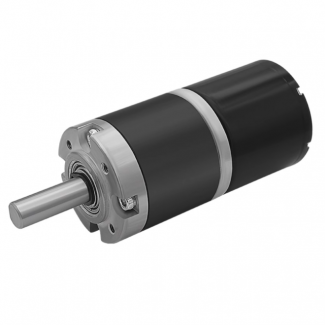

| BGM25EC2418 直流无刷减速电机 Spur geared brushless dc motor 特点Features: *经济型Economic *低噪声Low noise 应用Application: 电动阀门及执行器，玩具，机器人，智能家居 Electric valve and actuator,Roy,Robot,Smart household | ||||||||||||
| 电机型号 Model of electric motor | EC2418 | |||||||||||
| 电机类型 Motor structure | Brushless PM | |||||||||||
| 额定电压(V) Rated voltage | 12 | 18 | 24 | |||||||||
| 空载电流(mA) No load current | 90 | 60 | 70 | |||||||||
| 空载转速(RPM) No load speed | 6200 | 9300 | 8700 | |||||||||
| 额定电流(mA) Rated current | 180 | 119 | 150 | |||||||||
| 额定转速(RPM) Rated speed | 4800 | 7200 | 7000 | |||||||||
| 额定扭力(gf.cm) Rated torque | 20 | 20 | 20 | |||||||||
| 额定功率(W) Rated power | 1.4 | 1.4 | 2.5 | |||||||||
| 堵转电流(mA) Stall current | 750 | 500 | 700 | |||||||||
| 堵转扭力(gf.cm) Stall torque | 105 | 105 | 130 | |||||||||
| 减速电机性能 Gear motor performance | BGM25EC2418-DC12V | |||||||||||
| 减速箱结构 Gear type | Spur | |||||||||||
| 减速比(I) Ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 | 499 | ||
| 空载转速(RPM) No load speed | 1560 | 650 | 300 | 185 | 136 | 84 | 66 | 49 | 27 | 12 | ||
| 额定扭矩(kgf.cm) Output torque | 0.06 | 0.145 | 0.32 | 0.45 | 0.64 | 0.99 | 1.15 | 1.46 | 2.58 | 5.7 | ||
| 堵转扭矩(kgf.cm) Stall torque | 0.36 | 0.74 | 1.6 | 2.28 | 3.4 | 5 | 6.5 | 8.7 | 11 | 11 | ||
| 减速电机性能 Gear motor performance | BGM25EC2418-DC24V | |||||||||||
| 减速箱结构 Gear type | Spur | |||||||||||
| 减速比(I) Ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 | 499 | ||
| 空载转速(RPM) No load speed | 2300 | 850 | 400 | 250 | 188 | 120 | 89 | 67 | 39 | 15 | ||
| 额定扭矩(kgf.cm) Output torque | 0.06 | 0.145 | 0.32 | 0.45 | 0.64 | 0.99 | 1.15 | 1.46 | 2.58 | 5.7 | ||
| 堵转扭矩(kgf.cm) Stall torque | 0.36 | 0.74 | 1.6 | 2.28 | 3.4 | 5 | 6.5 | 8.7 | 11 | 11 | ||
| 备注 note: 1.减速电机电压，转速，扭矩可在一定范围内定制；Voltage,speed and torque of gear motors can be customized within a certain range. 2.部分减速电机可以加装编码器或刹车制动器；Encoder and brake are optional for some gear motors. 3.减速电机可以正反转、调速；Gear motors can rotate CW or CCW,and speed adjustable. 4.扭矩（扭力）单位换算：1N.m=10.2kg.cm=8.85lb.Inch=142.86oz.Inch. | ||||||||||||
| 接线示意图 Wiring diagram | ||||||||||||
 | ||||||||||||
| 电机外形尺寸 (Unit : mm) Outline & Dimension | ||||||||||||
 | ||||||||||||
*尺寸图仅供参考，减速箱的输出轴长，轴径，形状可以在一定范围内定制； The drawing is for reference only,the shaft of gearbox can be customized within a certain range, such as the length,diameter and special shape. | ||||||||||||
