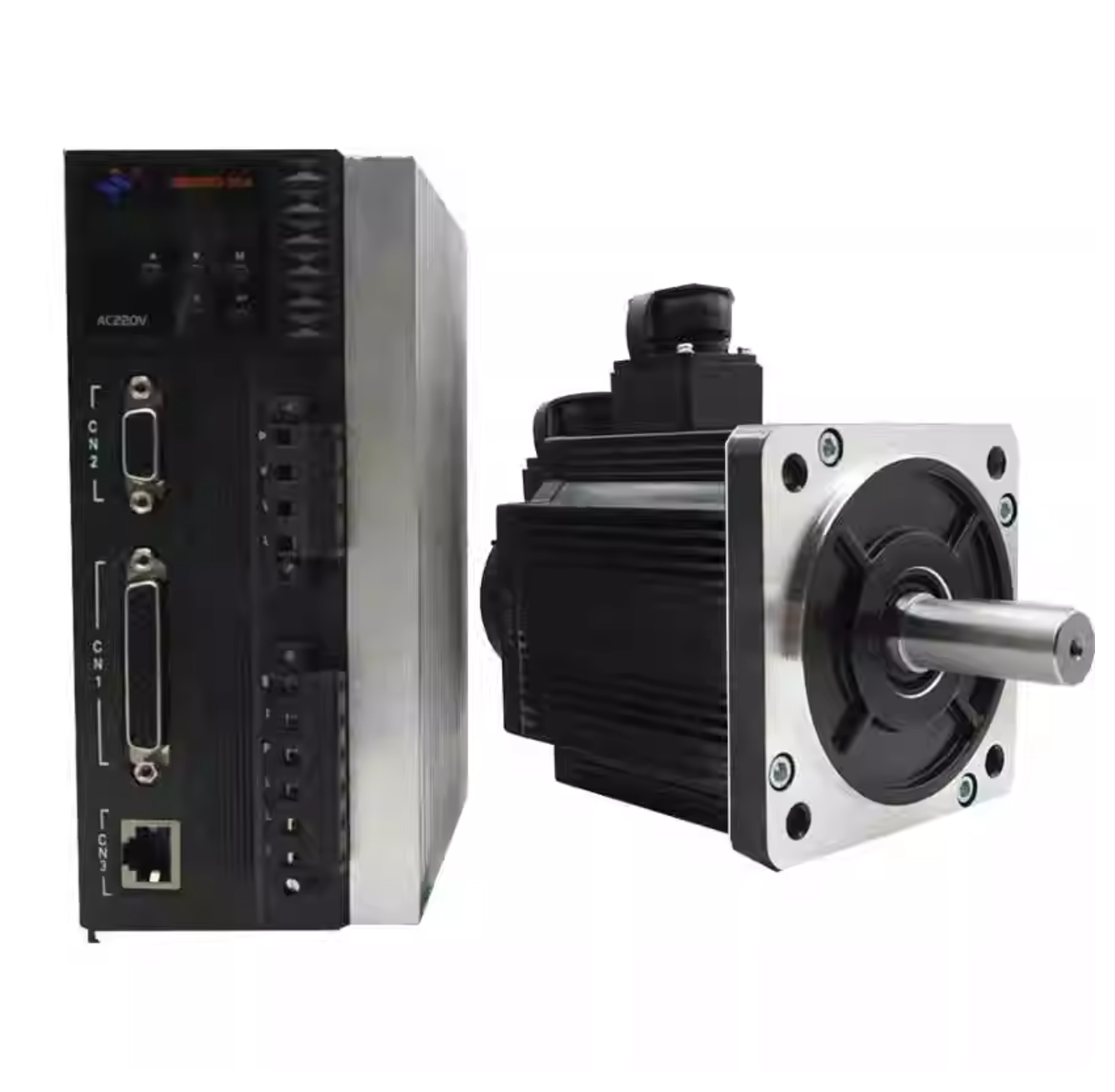

AC servo motor, 750w
3000rpm
B1 series servo motor and driver Main features
Faster Shortened positioning time Quick instruction tracking Response frequency up to 1KHz bandwidth Built-in RS-485 communication. EtherCAT under development.
More Reliable 3 times overload Grade 2 Motch Filter Regenerative functions Built-in dynamic brakes(optional) 3. More Accurate High resolution encoders up to 20bit (1,048,576 ppr) Load inertia detection Fully closed-loop function B1 series servo driver
Main features
1. Faster
Shortened positioning time
Quick instruction tracking
Response frequency up to 1KHz bandwidth
Built-in RS-485 communication. EtherCAT under development.
2. More Reliable
3 times overload
Grade 2 Motch Filter
Regenerative functions
Built-in dynamic brakes(optional)
3. More Accurate
High resolution encoders up to 20bit (1,048,576 ppr)
Load inertia detection
Fully closed-loop function
| B1 series | servo driver | motor frame size | servo motor | motor parameter | ||
| speed | torque | |||||
| power | model NO. | frame | model NO. | rpm | N.m | |
| 220VAC | 100W | EPS-B1-0D10AA-0000 | 40 | 40DNMA2-0D10DIAK | 3000 | 0.32 |
| 200W | EPS-B1-0D20AA-0000 | 60 | 60DNMA2-0D20DkAK | 3000 | 0.64 | |
| 400W | EPS-B1-0D40AA-0000 | 60 | 60DNMA2-0D40DkAK | 3000 | 1.27 | |
| 0.6KW | EPS-B1-0D60AA-0000 | 130 | 130DNMA2-0D60ABAM-HJ | 1000 | 5.73 | |
| 750W | EPS-B1-0D75AA-0000 | 80 | 80DNMA2-0D75CBAK | 2000 | 3.58 | |
| 750W | EPS-B1-0D75AA-0000 | 80 | 80DNMA2-0D75DkAK | 3000 | 2.39 | |
| 750W | EPS-B1-0D75AA-0000 | 90 | 90DNMA2-0D75DkAK | 3000 | 2.39 | |
| 750W | EPS-B1-0D75AA-0000 | 90 | 90DNMA2-0D75CKAK | 2000 | 3.58 | |
| 1KW | EPS-B1-0001AA-0000 | 80 | 80DNMA2-0001DkAK | 3000 | 3.18 | |
| 1KW | EPS-B1-0001AA-0000 | 90 | 90DNMA2-0001DkAK | 3000 | 3.18 | |
| 1KW | EPS-B1-0001AA-0000 | 130 | 130DNMA2-0001ABAM | 1000 | 9.55 | |
| 1KW | EPS-B1-0001AA-0000 | 130 | 130DNMA2-0001BBAM | 1500 | 6.37 | |
| 1KW | EPS-B1-0001AA-0000 | 130 | 130DNMA2-0001CBAM | 2000 | 4.77 | |
| 1KW | EPS-B1-0001AA-0000 | 130 | 130DNMA2-0001DBAM | 3000 | 3.18 | |
| 1.2KW | EPS-B1-0001AA-0000 | 130 | 130DNMA2-01D2CBAM | 2000 | 5.73 | |
| 1.5KW | EPS-B1-01D5AA-0000 | 130 | 130DNMA2-01D5ABAM | 1000 | 14.33 | |
| 1.5KW | EPS-B1-01D5AA-0000 | 130 | 130DNMA2-01D5BBAM | 1500 | 9.55 | |
| 1.5KW | EPS-B1-01D5AA-0000 | 130 | 130DNMA2-01D5CBAM | 2000 | 7.16 | |
| 1.5KW | EPS-B1-01D5AA-0000 | 130 | 130DNMA2-01D5DBAM | 3000 | 4.77 | |
| 1.8KW | EPS-B1-01D8AA-0000 | 130 | 130DNMA2-01D8DBAM | 3000 | 5.73 | |
| 2KW | EPS-B1-02D0AA-0000 | 130 | 130DNMA2-0002BBAM | 1500 | 12.73 | |
| 2KW | EPS-B1-02D0AA-0000 | 130 | 130DNMA2-0002CBAM | 2000 | 9.55 | |
| 2.7KW | EPS-B1-02D7AA-0000 | 180 | 180DNA-27BB1AMS | 1500 | 17.2 | |
| 3KW | EPS-B1-0003AA-0000 | 130 | 130DNMA2-0003CBAM | 2000 | 14.33 | |
| 3KW | EPS-B1-0003AA-0000 | 130 | 130DNMA2-0003DBAM | 3000 | 9.55 | |
| 3KW | EPS-B1-0003AA-0000 | 142 | 142DNA-30BB1AMS | 1500 | 19.1 | |
| 3KW | EPS-B1-0003AA-0000 | 142 | 142DNA-30CB1AMS | 2000 | 14.33 | |
| 3KW | EPS-B1-0003AA-0000 | 180 | 180DNA-30AB1AMS | 1000 | 28.6 | |
| 3KW | EPS-B1-0003AA-0000 | 180 | 180DNA-30BB1AMS | 1500 | 19.1 | |
| 3KW | EPS-B1-0003AA-0000 | 180 | 180DNA-30CB1AMS | 2000 | 14.33 | |
| 3.7KW | EPS-B1-03D7AA-0000 | 180 | 180DNA-37AB1AMS | 1000 | 35 | |
| 4KW | EPS-B1-04D0AA-0000 | 130 | 130DNMA2-0004DBAM | 3000 | 12.73 | |
| 4KW | EPS-B1-04D0AA-0000 | 142 | 142DNA-40BB1AMS | 1500 | 25.5 | |
| 4KW | EPS-B1-04D0AA-0000 | 180 | 180DNA-40BB1AMS | 1500 | 25.5 | |
| 4KW | EPS-B1-04D0AA-0000 | 180 | 180DNA-40CB1AMS | 2000 | 19.1 | |
| 4.5KW | EPS-B1-04D5AA-0000 | 130 | 130DNMA2-04D5DBAM | 3000 | 14.33 | |
| 4.5KW | EPS-B1-04D5AA-0000 | 180 | 180DNA-45BB1AMS | 1500 | 28.6 | |
| 4.5KW | EPS-B1-04D5AA-0000 | 180 | 180DNA-45CB1AMS | 2000 | 21.5 | |
| 5KW | EPS-B1-05D0AA-0000 | 180 | 180DNA-50CB1AMS | 2000 | 23.8 | |
| 5.5KW | EPS-B1-05D5AA-0000 | 180 | 180DNA-55BB1AMS | 1500 | 35 | |
